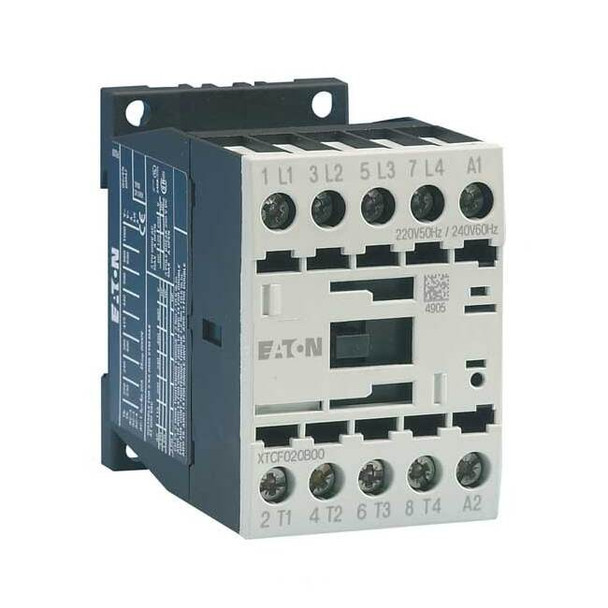

IEC Magnetic Contactor, No Auxiliary Contacts, 24V DC, 4 P, Non-Reversing, Screw XTCF020B00TD

The Eaton XT IEC contactor is an IEC magnetic contactor (electrically operated switching device) rated for operation within the specified parameters. It is a 4-pole, non-reversing model with a 24 V DC coil and a 20 A rating. It uses screw terminals for wiring, includes an embedded surge suppressor, and has no enclosure (IP20). The unit mounts on DIN rails or panels and is rated for up to 690V AC. It carries standards including UL Listed; CSA Certified; IEC 60947; EN 60947; CE Marked; RoHS. - Amperage Rating: 20A - Coil Voltage: 24 V DC - Action: Non-Reversing - Poles: 4 - Auxiliary Contacts: No - Contact Configuration: 0 NO, 0 NC - Maximum Voltage Rating: 690V AC - Embedded Surge Suppressor: Yes - Electrical Connection: Screw Terminals - Mounting Style: DIN Rail, Panel - Frame/Series: Frame B; Series XT - Enclosure: The device does not include an enclosure; ensure proper installation according to applicable standards. - IP Rating: IP20 - Certifications: UL Listed; CSA Certified; IEC 60947; EN 60947 - Operating Temperature: -13°F to 122°F - Mechanical Durability: 10,000,000 cycles - Dimensions: 3 in W x 2 in H x 3 in D - Mounting Details: Mounting Hole Diameter 0.16 in
