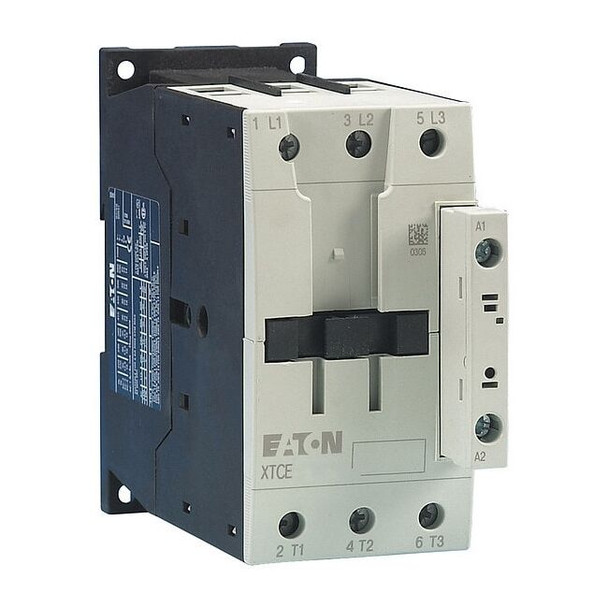

Eaton XTCE050D00B

The Eaton XT IEC contactor is a 3-pole IEC magnetic contactor (Frame D, Series XT) with a 240 V AC coil. It is configured for non-reversing operation and does not include auxiliary contacts. The unit uses screw terminals for electrical connection and is designed for mounting on DIN rails or panels, with no enclosure. It is rated for up to 50 A full-load current (inductive) and 80 A resistive at a maximum voltage of 690 V AC; includes embedded surge suppression. Mechanical/electrical lifecycle specifications are provided by the manufacturer. Key features - Product name: Eaton XT IEC contactor - Action: Non-Reversing - Reversing: No - Poles: 3 - Coil Voltage: 240 V AC - Amperage rating: 50 A - Full Load Amps: Inductive 50 A; Resistive 80 A - Maximum voltage rating: 690 V AC - Electrical connection: Screw Terminals - Mounting style: DIN Rail, Panel - Frame/Series: Frame D; XT - Includes Auxiliary Contacts: No - Number of Auxiliary Contacts: 0 - Embedded Surge Suppressor: Yes - Enclosure: No Enclosure - IP Rating: IP20 - Certifications: UL Listed; CSA Certified; IEC 60947; EN 60947 - Compliances: CE Marked - Operating temperature range: -13°F to 122°F - Frequency: 50/60 Hz - Mechanical durability: 10,000,000 cycles
