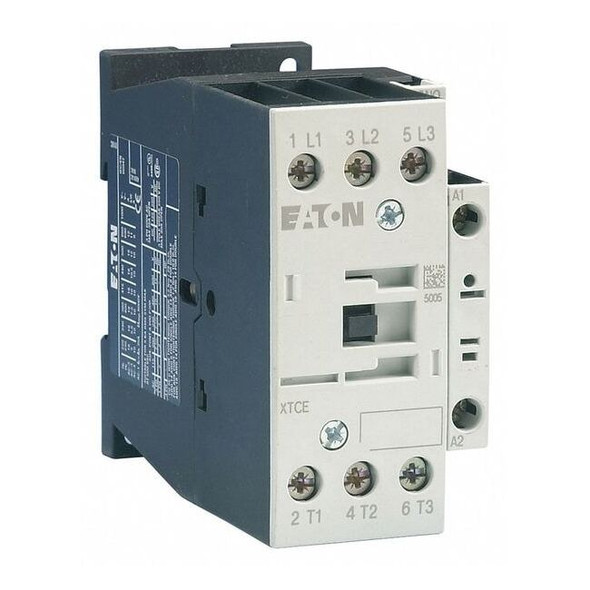

Eaton IEC Magnetic Contactor, 1NC, 24V AC, 3 P, Non-Reversing, Screw XTCE009B01T

The Eaton XT IEC contactor is an IEC magnetic contactor — an electrically operated switching device rated for operation within the specified IEC standards. It is a 3-pole, non-reversing unit with a 24V AC coil and a 1NC auxiliary contact, wired through screw terminals. The device is frame size B (XT series) and is compatible with DIN rail or panel mounting as specified; IP20 rating indicates degree of protection. - Coil voltage: 24 V AC - Action: Non-Reversing - Poles: 3 - Auxiliary contact: 1 NC - Main contact configuration: 1 NC - Electrical connection: Screw terminals - Frame/Series: XT, Frame B - Mounting style: DIN Rail, Panel - Enclosure: No Enclosure; IP20 - Certifications: UL Listed; CSA Certified; IEC 60947; EN 60947; CE Marked; RoHS - Maximum voltage rating: 690 V AC - Full Load Amps: Inductive 9 A; Resistive 22 A - Electrical durability: ratings based on standard testing conditions; actual performance may vary depending on application and environment - Mechanical durability: mechanical lifespan based on standardized testing; actual lifespan may vary depending on usage conditions - Embedded surge suppressor: Yes - Operating temperature range: -13 to 122 Degrees F - Mounting hole diameter: 0.16 in - Mounting hole distance (Height): 2.36 in - Mounting hole distance (Width): 1.38 in - Overall dimensions: 2.00 in H x 1.77 in W x 2.95 in D
