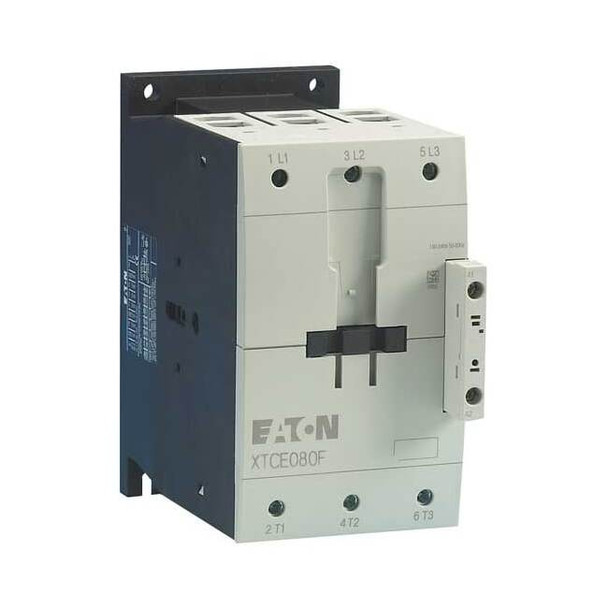

IEC Magnetic Contactor, No Auxiliary Contacts, 24V DC, 3 P, Non-Reversing, Screw XTCE080F00TD

The Eaton XT IEC contactor is an IEC Magnetic Contactor rated for switching within specified electrical parameters. It is rated for non-reversing operation, a 3-pole device with a 24 V DC coil and screw terminals; does not include auxiliary contacts. It is intended for use with compatible IEC mounting configurations; enclosure requirements should be determined based on application needs. - Action: Rated for non-reversing operation - Amperage Rating: 80A - Coil Voltage: 24V DC - Coil Volts: 24 V DC - Contact Configuration: 0 NO, 0 NC - Aux. Contact Configuration: Does not include auxiliary contacts - Auxiliary Contact Form: No Auxiliary Contacts - Certifications: UL Listed; CSA Certified - Embedded Surge Suppressor: Yes - Enclosure NEMA Rating: No Enclosure - Frame / Series / Class / Code: Frame F / XT - Frame Size: F - Frequency: 50/60 Hz - Full Load Amps - Inductive: 80 A - Full Load Amps - Resistive: 110 A - HP @ 1 Phase - 120V: Horsepower ratings are provided for specific voltage and phase conditions; consult specifications for detailed information - HP @ 1 Phase - 230V: 15 - HP @ 1 Phase - 240V: 15 hp - HP @ 3 Phase - 208V: 25 hp - IP Rating: IP20 - Includes Auxiliary Contacts: No - Item: IEC Magnetic Contactor - Maximum Operating Temperature: rated for operation within specified temperature ranges - Maximum Voltage Rating: 690V AC - Mechanical Operating Durability: 10000000 cycles - Minimum Operating Temperature: rated to operate within the specified temperature range; actual performance may vary based on conditions - Mounting Hole Diameter: 0.24 in - Mounting Hole Distance - Height: 6.14 in - Mounting Hole Distance - Width: 2.79 in - Mounting Style: DIN Rail, Panel - NEMA Enclosure Rating: No Enclosure - Number of Auxillary Contacts: 0 - Number of Poles: 3 - Overall Depth: 6.3 in - Overall Height: 6.69 in - Overall Width: 4.37 in - Product Height: 6.69 in - Product Length/Depth: 6.30 in - Product Name: Eaton XT IEC contactor - Product Width: 4.37 in - Respons
