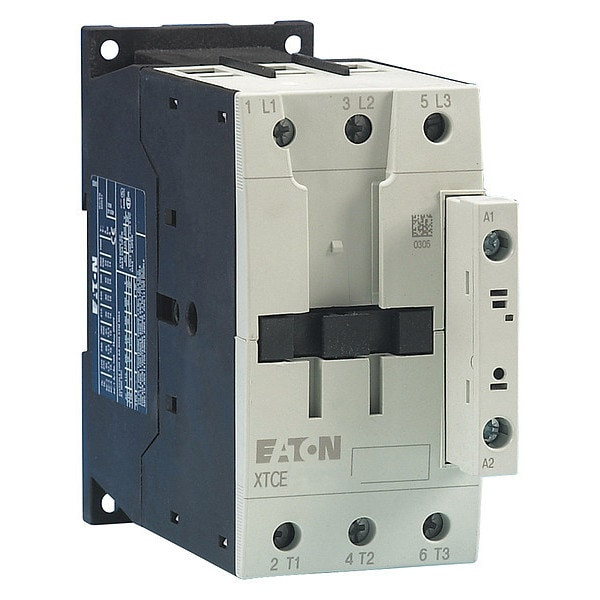

IEC Magnetic Contactor, No Auxiliary Contacts, 24V DC, 3 P, Non-Reversing, Screw XTCE065D00TD

The Eaton XT IEC contactor is a 3-pole, 24 V DC coil IEC magnetic contactor (Frame D) that includes no auxiliary contacts and has screw terminals. It is a full-voltage, non-reversing type with a maximum rating of 690V AC. The unit carries a 65 A full-load current for inductive loads and 98 A for resistive loads, includes an embedded surge suppressor, and is rated for use within the specified temperature range of -13 to 122 °F. It is part of the XT series and can be mounted on a DIN rail or panel, with no enclosure and an IP20 rating. Key features - Coil Voltage: 24 V DC - Poles: 3 - Action: Non-Reversing; Reversing: No - Auxiliary Contacts: Includes no auxiliary contacts - Contact Configuration: 0 NO, 0 NC - Maximum Voltage Rating: 690V AC - Full Load Amps: Inductive 65 A; Resistive 98 A - Frame / Series: Frame D; XT - Mounting: DIN Rail, Panel - Termination: Screw - Embedded Surge Suppressor: Yes - Enclosure: No Enclosure - IP Rating: IP20 - Operating Temperature: -13 to 122 °F - Dimensions: W 2.17 in x H 4.09 in x D 5.78 in - Mechanical Durability: 10,000,000 cycles - Electrical Operating Durability: 300 AC-4 (400V), 800 AC-1 (400V), 800 AC-3 (400V) - Certifications/Standards: UL Listed; CSA Certified; IEC 60947; EN 60947; CE Marked; RoHS
