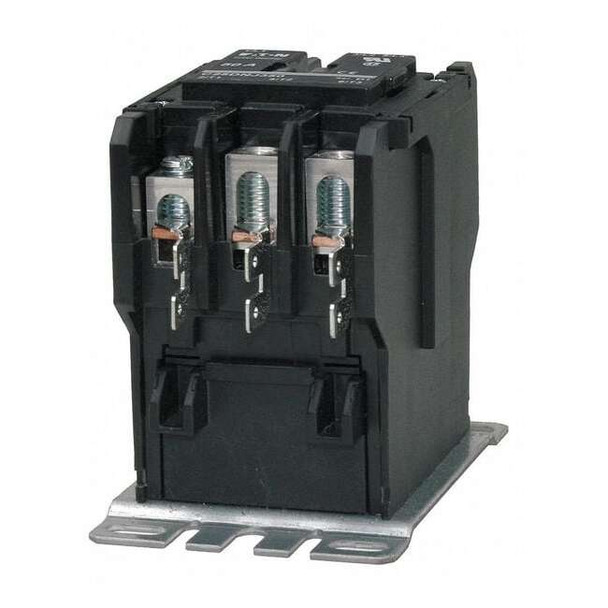

Eaton C25FNF360B

The EATON - C25FNF360B is a Definite Purpose Magnetic Contactor, an industrial electrical device designed to control the flow of power in heavy-duty applications. It operates by responding to electrical impulses, allowing or interrupting power supply based on the need. This tool is commonly used for managing and automating machinery operations in various sectors like HVAC, data processing, and manufacturing.Action: Non-Reversing – The contactor functions with a constant current flow direction.Auxiliary Contact Module Capacity: 4 – Allows flexibility in managing multiple electrical loads or signals.Coil Voltage: 208V-240V AC – Specifies the voltage range required for effective operation.Frequency: Rated for a frequency range of 50/60 Hz.Full Load Amps-Inductive: Specifies the full load amps-inductive at 60 A and full load amps-resistive at 75 A, within which the device is rated to operateHorsepower @ Three Phase - 480V AC & Horsepower @ Three Phase - 600V AC : Compatible with three-phase supplies with varying motor power capacities, ranging from half horsepower up to an unspecified limit or even up to 60 horsepower based on voltage levelInput Control Type: Uses a two-wire system for power supply and controlMaximum Operating Temperature: Rated for operation at temperatures reaching as high as158 Degrees F.
