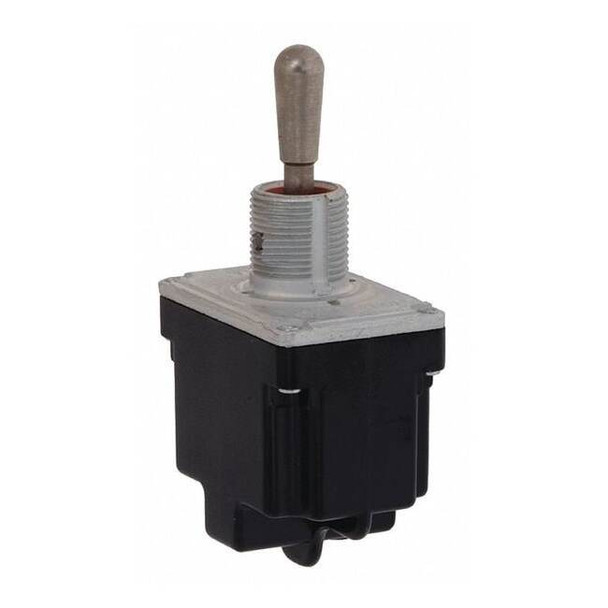

Toggle Switch, DPST, Maintained On-Off, MIL-DTL-3950, IP67 Rated 2TL1-2

Honeywell MICRO SWITCH TL Series toggle switch is a DPST (Double Pole, Single Throw) device suitable for use in applications that specify military qualification or seal rating requirements. It features a maintained on/maintained off function and includes four screw terminal connections. The switch construction incorporates a bonded seal between the toggle lever and bushing, as well as between the cover and case, constructed with features intended to provide resistance to shock, vibration, dust, and water exposure as specified by applicable ratings. Key features: - Contact ratings: 15A @ 125V AC / 250V AC; 10A @ 125VAC / 250VAC / 28VDC; DC contact rating of 20A @ 28V - Horsepower: Maximum horsepower: 1 hp at 250V AC; 0.5 hp at 125V AC (per manufacturer specifications) - Actuator: Standard metal lever style with silver finish; actuator length of 0.67 in - Mounting: Fits mounting holes with diameter of approximately 0.47–0.50 in; stem thread size is 15/32-32 UNS-2A - Ingress protection per IP67 standard (dust tight and protected against temporary immersion in water under manufacturer-specified conditions) - Operating temperature range: -85°F to +160°F - Construction includes bushing, case, cover, toggle lever; overall dimensions are depth—1.13 in., height—2.49 in., width—0.89 in. - Constructed with materials tested for shock and vibration performance according to relevant standards - Standards met: CE, CSA, MIL-DTL-3950 qualified, UL Listed
