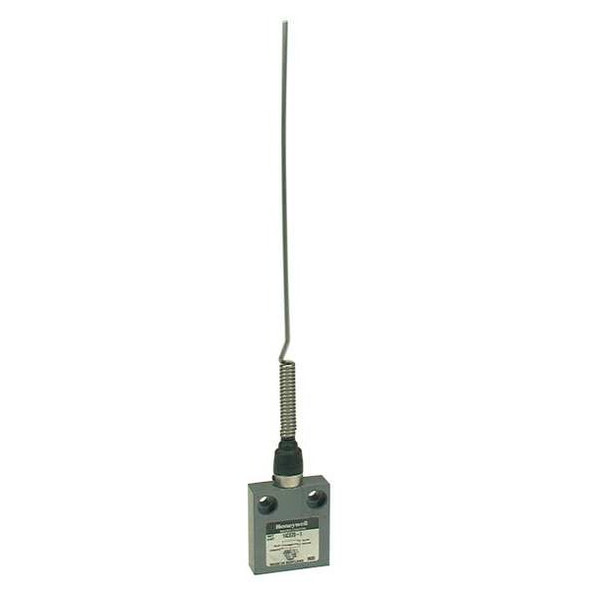

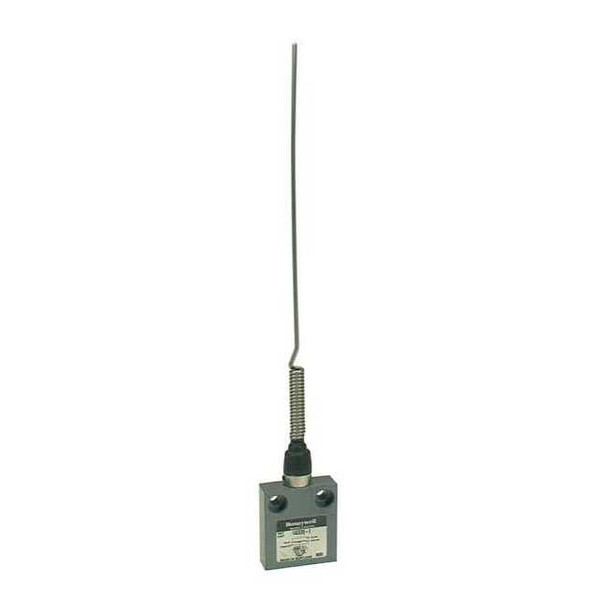

Miniature Limit Switch - SPDT, Wobble Stick, 8.94" Spring, Pre-Wired 914CE20-6

The Honeywell 914CE Series Limit Switch is a compact, enclosed switch intended for applications within the specified ratings. It features a top-mounted wobble stick actuator with an 8.94-inch steel coil spring and provides single-pole double-throw (SPDT) switching with one normally open (NO) and one normally closed (NC) contact. The device is constructed from die-cast zinc in a miniature body style, equipped with two horizontal mounting holes spaced at 0.98 inches apart.Key features:- AC Contact Rating: 5A at 240V- Actuator Style: Wobble Stick; Actuator Length: 8.94 in; Top location- Body Material/Style: Die cast zinc, miniature configuration- Electrical Connection: Pre-wired cable, 6 ft SJTO- Contact Form: SPDT (1NO/1NC)- Mounting: Surface mount with two 0.2 in diameter holes on a horizontal pattern- NEMA enclosure types and ingress protection (IP) ratings are based on manufacturer testing; actual performance may vary depending on installation and environmental conditions- Rated operating temperature range: minimum of 32°F to maximum of either158°F or221°F as specified- Operator Configuration: Steel coil spring with spring return action
