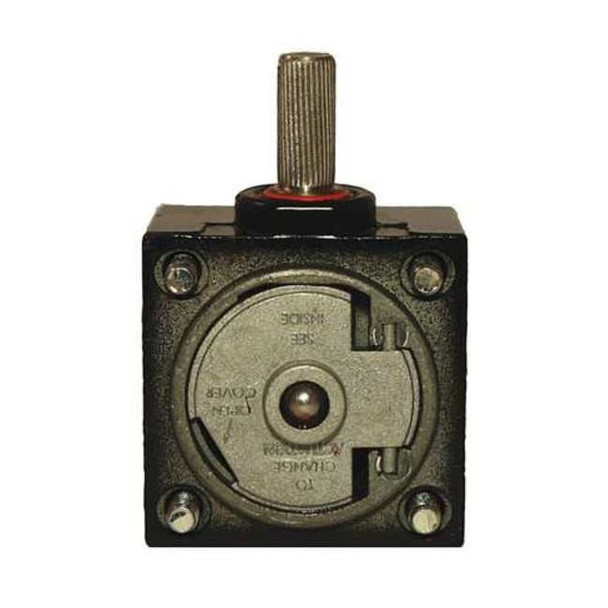

Limit Switch Rotary Head - Side-Mount, HDLS-LSR Series, Low Torque LSZ1R

The Honeywell Limit Switch Replacement Rotary Head for LSR Series is a limit switch head designed for use with HDLS and LSR series switches. This side-mounted rotary lever actuator is compatible with Honeywell model numbers including: 2B, 3K, 4L, 5A, 6B, 7L, 8A, LSR 1A. It features a low torque head and supports both clockwise (CW) and counterclockwise (CCW) directional movement within specified parameters. Key Features: - Actuator Style: Side-mounted rotary lever - Compatible Models: Compatible with Honeywell HDLS and LSR series switches; applicable to model numbers including: 2B, 3K, 4L, 5A, 6B, 7L, 8A, LSR 1A - Directional Movement: Capable of clockwise (CW) and counterclockwise (CCW) directional movement within specified parameters - Operating Torque: Rated at 1.7 in-lb - Travel Specifications: Differential travel of up to 7 degrees; overtravel minimum of 60 degrees; pretravel maximum of 15 degrees - NEMA Enclosure Ratings: Rated for use in environments requiring NEMA types 1, 3, 4/4X/6/6P enclosure classifications - Operating Temperature Range: From 30°F to 250°F - Voltage Rating: Up to 600V AC / 250V DC - Standards Compliance: RoHS
