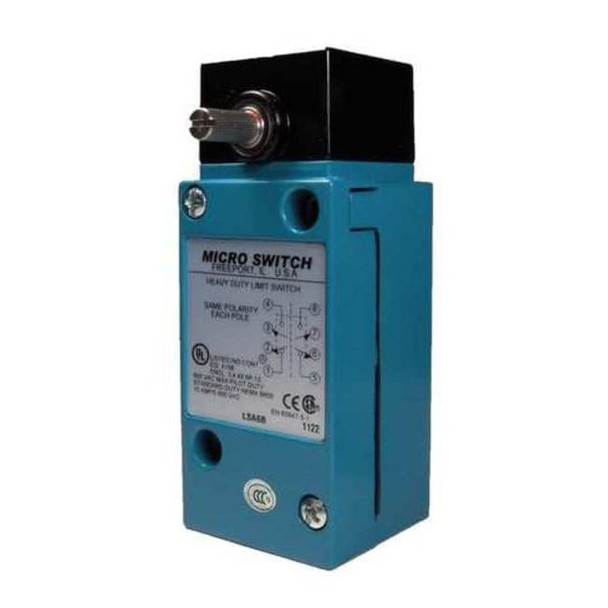

Limit Switch - Heavy Duty, Rotary, DPDT 10A, Surface Mount, LSA Series LSA6B

The Honeywell Heavy Duty Limit Switch from the LSA Series is a rotary-style, side-actuated switch rated for operation within the specified environmental and electrical parameters. It features a zinc die-cast body with plug-in configuration and surface mounting, supporting both clockwise (CW) and counterclockwise (CCW) actuation. The unit offers momentary action with a contact form of 2NC/2NO (DPDT), rated for 10A at 600V AC or 10A at 250V DC. No actuator lever is included. Key features: - Rotary head actuator style without lever; side actuator location - Contact rating: 10A at 600V AC / 10A at 250V DC; DPDT (2NC/2NO) - Surface mount with two diagonal mounting holes (0.20 in diameter, spacing: 2.34 in x 1.16 in) - Body dimensions: Height – 4.69 in, Width –1.88 in, Depth –1.79 in - Operating temperature range: 10°F to 250°F - NEMA enclosure ratings: Types 1,12,13,3,4,4X,6,6P; housing constructed to meet IP65/66/67 standards as specified - Electrical connection via screw terminals; wiring entry size: 1/2"-14 NPT - Mechanical travel specifications include differential travel of7°, pretravel of15°, overtravel of60° - Standards met: CCC, CE, CSA, UL
