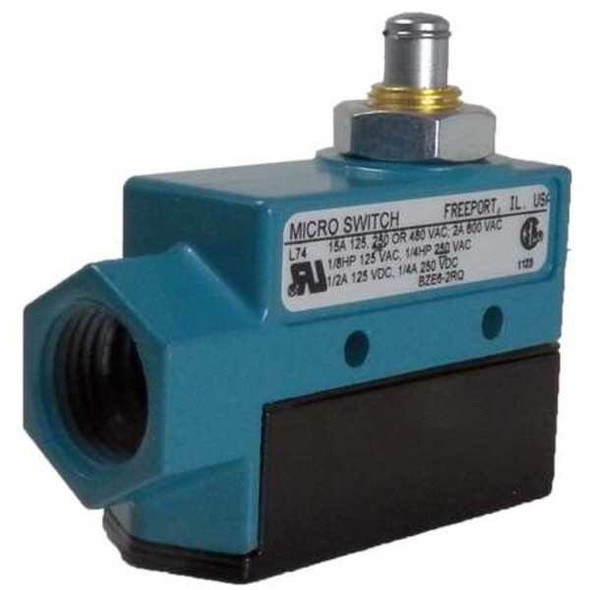

Limit Switch - BZE6, Roller Plunger, SPDT, 15A 600V, IP66, Surface Mount BZE6-2RQ8

Honeywell’s BZE6 Series Limit Switch features a roller plunger actuator and is suitable for installation in indoor and outdoor environments, subject to compliance with specified ratings and protection standards.The switch incorporates a zinc die-cast miniature body with surface mounting, offering compact installation where space is limited. It uses the Honeywell MICRO SWITCH BZ snap-spring mechanism and contains single-pole double-throw (SPDT) contacts: one normally closed (NC), one normally open (NO).Key Features:- AC Contact Rating: 15A at 600V; DC Contact Rating: 2A at 250V- Actuator Style: Plunger, Roller; Actuator Length: 1.2 in; Roller Diameter: 0.5 in (steel)- Body Dimensions: Height 1.75 in, Width/Depth 3.04 in x 1 in; Miniature style- Mounting: Surface mount with two horizontal holes spaced at 1.00 in center-to-center- Electrical Connection: Screw terminals; Wiring Entry: 1/2 in NPT- Operating Force Range: Minimum 9 ozf to Maximum 13 ozf- Travel Parameters: Differential travel of 0.002 in, pretravel of up to .02 in, overtravel of .14 in- Temperature Range: -25°F to +160°F - Rated IP66, NEMA Type 1 enclosure per manufacturer specifications- Certified to applicable UL and CSA standards
