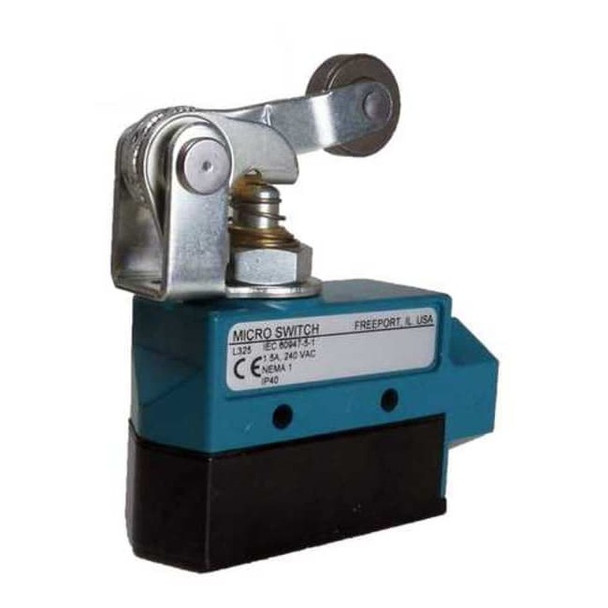

Limit Switch - Compact, SPDT, Roller Lever, 15A 600V AC, Surface Mount BZE6-2RQ2

The Honeywell Limit Switch, part of the BZ Series, is a general purpose miniature limit switch suitable for surface mounting applications. It features a plunger with a horizontal steel roller lever actuator and offers single-pole double-throw (SPDT) contacts with 1 normally closed (NC) and 1 normally open (NO) contact. The zinc die cast body has a compact design; refer to dimensions for installation requirements. Key Features: - Contact Ratings: 15A at 600V AC; 2A at 250V DC - Actuator Style: Plunger with horizontal steel roller lever; actuator length of 0.91" - Body Dimensions: Height 1.75", width 3.04", depth/overall depth 1" - Mounting: Surface mount with two horizontally spaced holes (1" apart), hole diameter of 0.22" - Electrical Connection: Screw terminals; wiring entry via 1/2" NPT - Mechanical Travel: Pretravel of 0.19", overtravel of 0.22", differential travel of 0.01" - Operating Force: Minimum force required is 10 ozf, maximum is 18 ozf - Temperature Range: Rated for operation within -25°F to +160°F temperature range - Protection Ratings: IP66 ingress protection; NEMA Type 1 enclosure rating - Standards Compliance: CSA and UL listed
