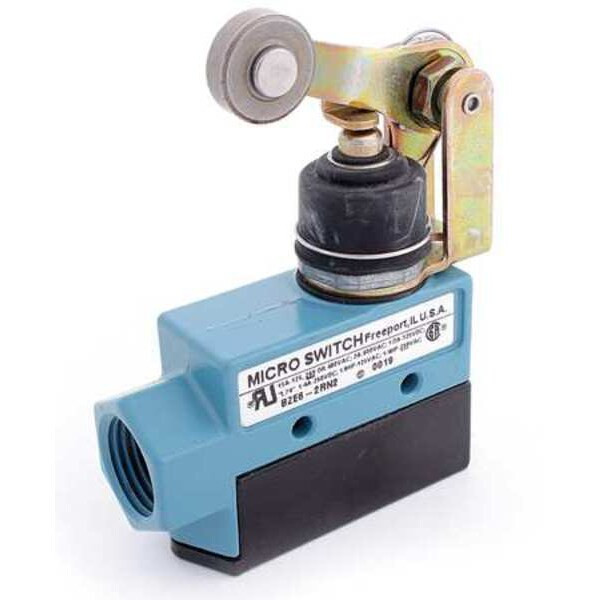

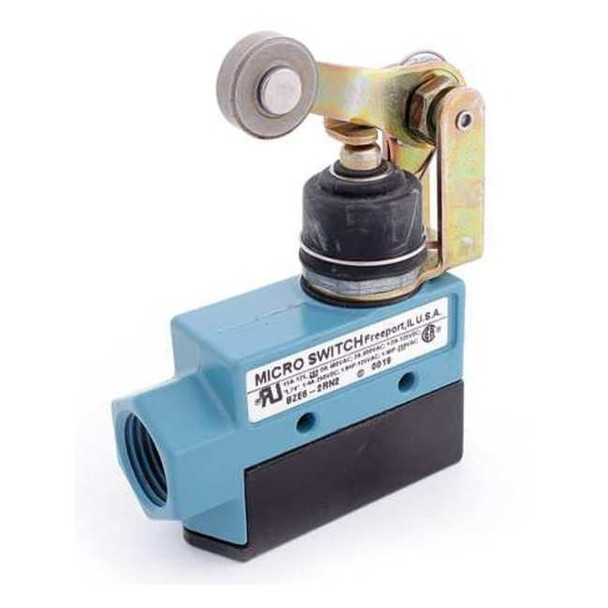

Limit Switch - Compact, SPDT, Roller Lever, Zinc Die Cast, IP66 Rated BZE6-2RN2

The Honeywell Limit Switch is a general purpose, miniature limit switch suitable for indoor and outdoor environments as specified by the product’s environmental ratings. It features a horizontal roller lever actuator with a boot seal per manufacturer specification, housed in a zinc die cast body with electrostatic epoxy coating applied to the zinc die cast body. The compact design has dimensions that may be compatible with installations in limited spaces (see specifications), and the unit incorporates a single pole double throw (SPDT) contact form with both normally closed (NC) and normally open (NO) contacts. Key Features: - Contact Ratings: 15A at 600V AC; 2A at 250V DC - Actuator Style: Plunger, horizontal roller lever; boot sealed - Body Dimensions: Height 1.75 in, Width 3.04 in, Depth 1.0 in - Mounting: Surface mount with two mounting holes (0.22 in diameter), spaced 1.00 in apart horizontally - Electrical Connection: Screw terminals; wiring entry via 1/2 in NPT - Operating Force: Minimum 10 ozf to maximum 20 ozf - Travel Parameters: Differential travel of 0.01 in; pretravel of 0.19 in; overtravel of 0.22 in - Roller Specifications: Steel material, diameter of 0.75 in, width of 0.25 in - Environmental Ratings: IP66 ingress protection; operating temperature range from -25°F to +160°F - Standards Certifications: CSA and UL
