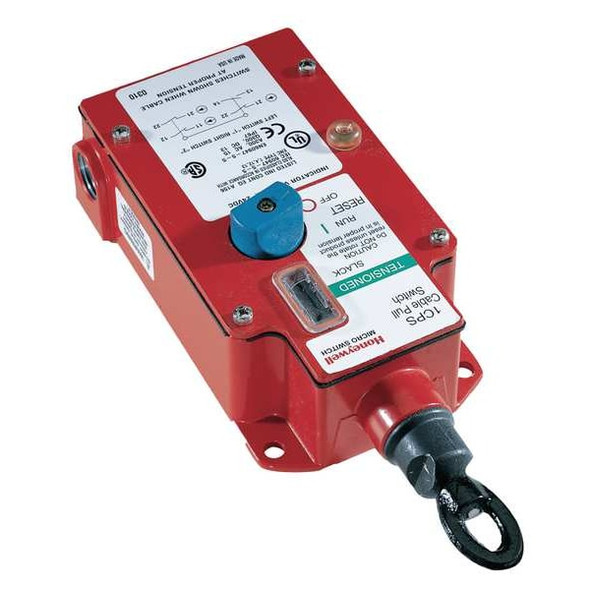

Cable-Pull Safety Switch - 1NO-1NC, 250 ft Span, LED Indicator, CPS Series 1CPSA1B

Honeywell's Cable Pull Safety Switch, Single Head (1NO/1NC), is a maintained-action emergency cable pull switch compatible with the MICRO SWITCH CPS Series. This unit is intended for signaling applications along cable spans up to 250 ft. The internal mechanism latches when the actuating cable is either pulled or slackened, requiring manual reset via a rotary knob after activation. A 120V AC LED indicator provides visual status feedback.Key features include:- Contact configuration: 1 Normally Open / 1 Normally Closed (1NO/1NC)- Maximum cable span: 250 ft- Case material: Zinc die cast; IP67 and NEMA 1, 4, 12, and 13 rated enclosure- AC contact rating: Up to 10A @ 600V; DC contact rating: Up to 2.5A @ 24V- Indicator light: Integrated LED for status indication at 120VAC- Mounting style: Single end with left or right cable connection location- Reset method: Rotary knob; maintained switch function- Operating temperature range: -40°F to +176°F - Wiring entry size: 1/2 in NPT - Dimensions (L x W x D): 10.62 in x 3.9 in x 2.57 in
