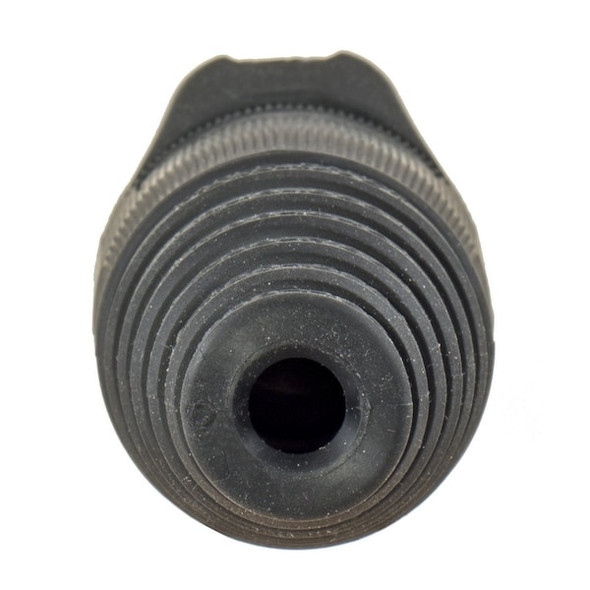

Hubbell Wiring Device-Kellems Connector,Double Set,Blu,300AC-DC,Female HBL300FBL

The HUBBELL Series 16 Double Set Female Connector is a single pole device designed for temporary electrical power distribution. It features a double set screw terminal connection and accommodates cable sizes from 6 AWG to 2/0 AWG. The connector is rated for up to 300A at both AC and DC, with voltage ratings of 600V AC and 250V DC. Its construction includes a brass contact within a elastomer housing.Key Features of the HUBBELL Series 16 Double Set Female Connector: Amperage Rating: Rated for up to 300A (AC/DC)Voltage Rating: Rated for operation at up to 600V AC or 250V DCCable Range: Accepts wire sizes from #6 AWG to 2/0 AWGTerminal Connection Type: Double set screw terminal connectionContact Material: Brass conductor and contact materialHousing Material: elastomer housing provides resistance against impact and wearNEMA Enclosure Ratings: Meets NEMA Types 3R, 4X, and 12K requirementsIndustry Standards: Complies with NEC, ANSI/NFPA 70; UL Listed; cUL Listed standardsTaper Nose Style: Single cam taper nose configuration compatible with Series 16 devices
