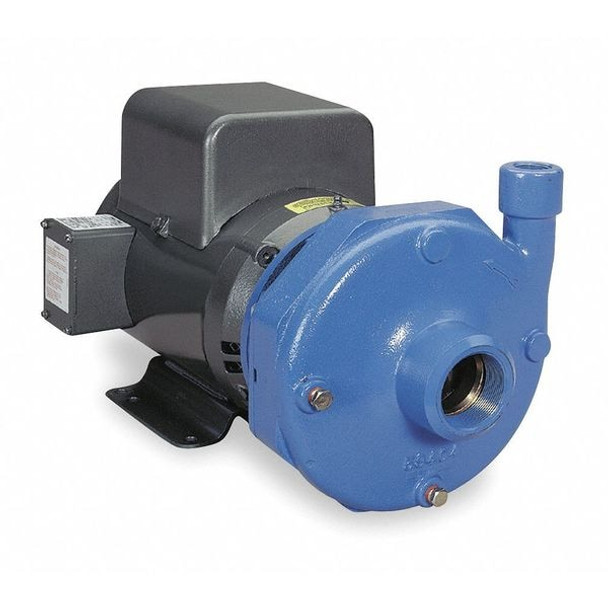

Goulds 5BF1L9G0, Centrifugal Pump,Series 3656,10 HP,170 ft. Max. Head

This item is a straight centrifugal high head pump with a horizontal mounting orientation and a cast iron housing. It is powered by a 10 hp, three-phase electric motor operating on 208–230/460V AC and uses a closed bronze impeller with a mechanical seal. The pump is manually primed and configured with NPT inlet and discharge connections, supporting water transfer within specified flow, head, pressure, and temperature limits. Key Features: Pump Type: Straight centrifugal high head pump with horizontal mounting. Motor Specifications: 10 hp, three-phase motor operating at 3,500 RPM on 208–230/460V AC, 60 Hz. Flow and Head Performance: Maximum flow rate up to 210 gpm with a maximum head of 170 ft. Pressure Rating: Maximum operating and shutoff pressure specified at 175 psi. Temperature Rating: Maximum liquid temperature specified up to 212°F. Construction Materials: Cast iron housing with bronze impeller and stainless steel shaft. Connections: 2 in NPT inlet and 1-1/2 in NPT discharge connections. Solids Handling: Maximum solid diameter specified at 5/16 in. Duty Cycle: Continuous-duty operation.
