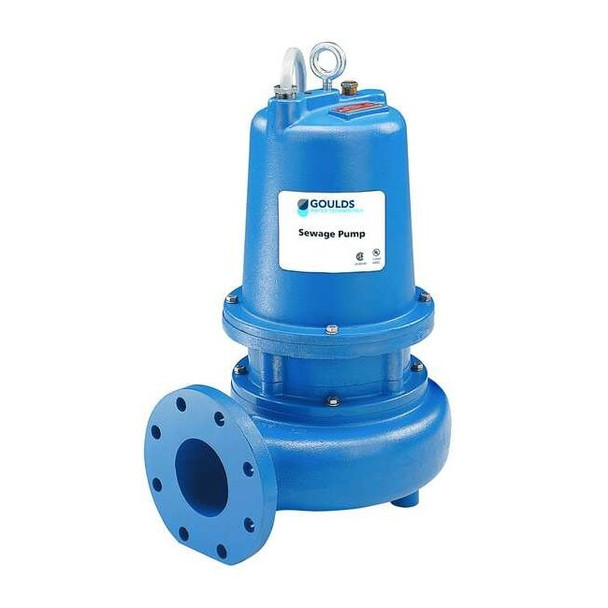

Goulds WS5032D4 Submersible Sewage Pump, 5 HP 4", Manual, 230V WS5032D4

The Goulds WS5032D4 is a 5 HP submersible sewage pump. It features a cast iron body and impeller capable of passing 3 inch solids. Mechanical and Performance Data: - The pump operates at a maximum head of 52 feet and provides the following flow rates: - 10 ft Head: 650 gpm - 20 ft Head: 525 gpm - 30 ft Head: 370 gpm - 40 ft Head: 175 gpm - The assembly is built with a cast iron base and uses ball bearings for shaft alignment and thrust load management. Electrical and Operational Specifications: - Motor: 5 HP, 230V, 3-Phase, 1750 RPM (60 Hz). - Current: 16.60 Amps. - Max. Liquid Temperature: 104°F Construction and Dimensions: - Materials: Cast iron housing, volute, and impeller. - Shaft Seal: Silicon - Discharge: 4-inch - Dimensions: 28-1/4" Height x 15-3/4" Body Diameter.
