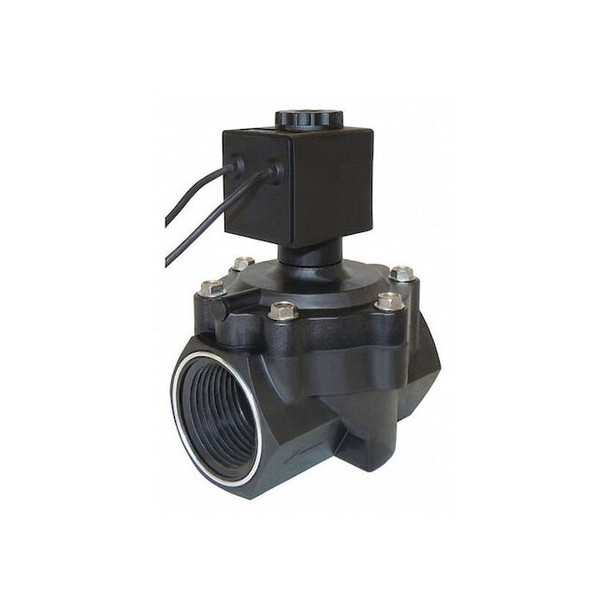

Spartan Scientific 3685-030-9217B

The SPARTAN SCIENTIFIC 3685-030-9217B is a normally closed, 2-way solenoid valve with media compatibility: air, light oils, noble gases, and water. It features a remote pilot valve type with an internal pilot actuator and diaphragm valve design. The valve body is constructed from Ultem resin and is equipped with EPDM seals. Maximum fluid temperature rating: 140°F. The valve operates at 120V AC and 60 Hz frequency and includes a coil with watertight and dust-tight enclosure and Class F insulation. It has a NEMA 4 enclosure rating. Key Features: - Nominal Pipe Size: 3/4 in with NPT inlet and outlet connections and NPT thread type - Operating Pressure Differential: Minimum 10 psi; Maximum 150 psi for air/inert gas, light oil, and water - Flow Coefficient (Cv): 9.5 GPM at 1 psi pressure drop - Operating Temperature Range: Ambient 50°F to 122°F; Fluid up to 140°F - Dimensions: Overall Height 4-1/16 in; Length 3 in; Width 2-13/16 in - Electrical Connections: Wire leads; Wattage 6.5 W - Includes coil and seals for installation - Valve body style: Straight; Valve positions: 2-position; Valve type: Remote pilot - Standards: CE certified; IP Rating: IP65
