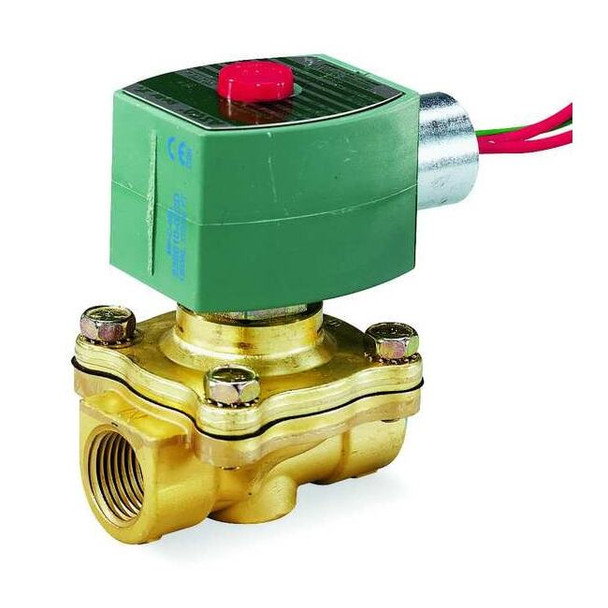

Asco 8210B021

The ASCO 8210B021 is a pilot-operated, 2-way/2-position solenoid valve with a normally closed starting configuration. It features a brass valve body and controls flow of air, inert gas, and water within an operating differential pressure range of 5 to 125 psi. The valve includes the required coil and sealing components, and operates on 120V AC; 50/60 Hz. Mounting orientation: Vertical; Environmental rating: Corrosive, Hazardous, Indoor, Outdoor. Orifice diameter: 5/16 inch; Cv: 1.2. Key Features: - Valve Design: 2-Way/2-Position, Pilot Operated, Normally Closed - Body Material: Brass - Nominal Pipe Size: 3/8 in, with NPT inlet and outlet connections - Operating pressure range: 5 to 125 psi for air, inert gas, and water - Media Compatibility: Air, Inert Gas, Water - Electrical Specifications: 120V AC, 6.5 W coil wattage, 1/2 in conduit hub electrical connections - Environmental rating: Corrosive; Hazardous; Indoor; Outdoor - Temperature Ratings: Ambient 14 to 140°F; fluid media up to 180°F - Physical Dimensions: Overall Length 1-11/16 in; Width 2 in; Height 2-15/16 in - Coil Enclosure: Watertight; Coil insulation class: F - Response Time: 1 second - Seal Material: NBR - IP Rating: 66 - Includes: Coil and seal - Standards: UL Listed - Mounting Orientation: Vertical
