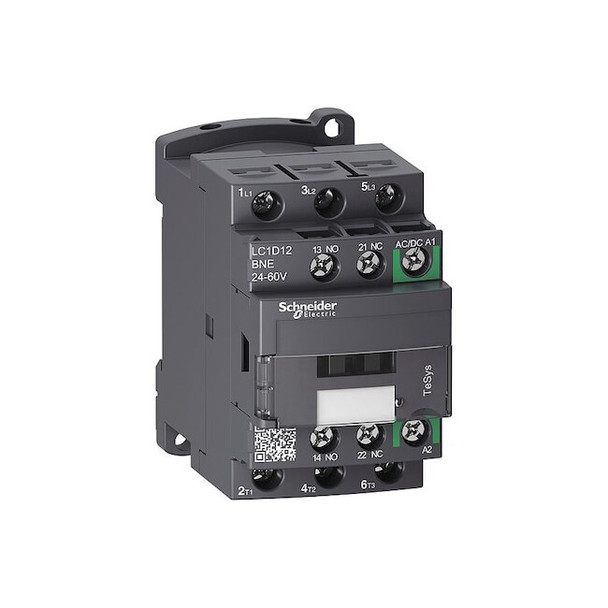

IEC Magnetic Contactor, 1NC-1NO, 24V-60V AC-DC, 3 P, Non-Reversing, Screw Clamp LC1D12BNE

The Schneider Electric IEC Magnetic Contactor is a 3-pole, non-reversing, electrically operated switch rated for operation within specified voltage ranges; it controls power circuits in accordance with IEC standards. It utilizes a 24–60 V AC/DC coil to operate its main contacts; auxiliary contacts are available (1NO/1NC). It includes screw clamp terminals for wiring. The unit is part of the TeSys Deca family and is supplied with a protective cover; it does not include an enclosure. It is intended for mounting in control panels compatible with IEC-standard sizing and interchangeability. Key features - Coil voltage: 24–60 V AC/DC - Poles and contacts: 3 poles; 3 normally open main contacts - Auxiliary contacts: 2 (1NO/1NC); available - Reversing: Non-Reversing - Electrical connection: Screw Clamp Terminals - Enclosure/IP: IP20; No Enclosure - Mounting/series: TeSys (Deca); Mounting: DIN Rail, Plate - Dimensions and weight: Depth 3.39 in; Height 3.03 in; Width 1.77 in; Net weight 0.373 kg - Maximum voltage and frequency: 690 V AC; 50/60 Hz - Rated making capacity: 250 A @ 440 V (Power Circuit); 140 A (AC Signalling); 250 A (DC Signalling) - Durability: Mechanical 15 Mcycles; Electrical 2.3 Mcycles (11 A AC-3), 0.8 Mcycles (25 A AC-1)
