Qa1

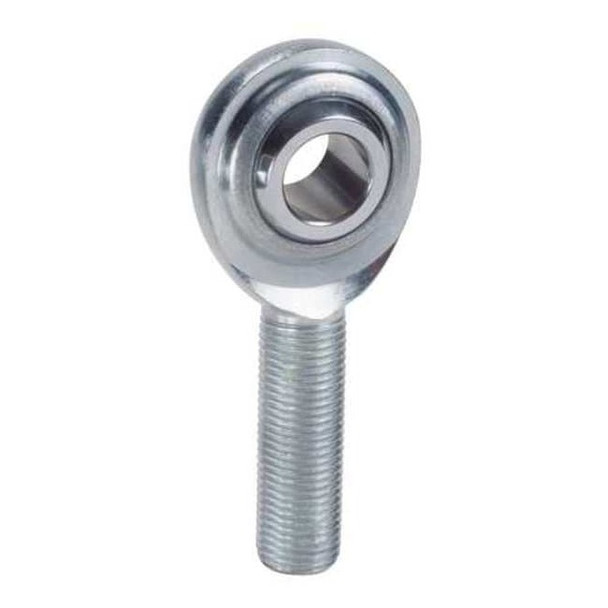

Qa1 Male, Rod End, LH, 5-5.065mm MCML5
- SKU:
- ZO-G2590869
- UPC:
- 806990016157
- MPN:
- MCML5
- Condition:
- New
- Weight:
- 0.10 LBS
- Shipping:
- Free Shipping
On Sale
Frequently bought together:
Description
Spherical Rod End, System of Measurement Metric, Bore Diameter 5 mm, Head Outside Diameter 16 mm, Head Width 5.75 mm, Shank Thread Length 20 mm, Shank Thread Size M5x0.8, Housing Material Carbon Steel, Shank Thread Direction Left Hand, Application Light Duty, Ball Diameter 11.1 mm, Ball Material Alloy Steel, Ball Material Grade 52100, Bore Diameter Tolerance +0.065/-0.012 in, Housing Material Finish Chrome Plated, Inner Ring Width 8 mm, Maximum Ball Swivel 22 Degrees , Overall Length 41 mm
View AllClose
Additional Information
Country of Origin: |
China |
Material: |
Carbon Steel |
SubCategory: |
Power Transmission |
International Shipping: |
No |
Lead Time: |
Expected to ship in 1-2 business days |
Related Products
Related Products
On Sale
Qa1 Female, Rod End, LH, 5-5.065mm MCFL5
Qa1
MSRP:
$13.25
Now:
$10.40
Was:
$12.24
Spherical Rod End, System of Measurement Metric, Bore Diameter 5 mm, Head Outside Diameter 16 mm, Head Width 5.75 mm, Shank Thread Length 14 mm, Shank Thread Size M5x0.8, Housing Material Carbon...
On Sale
Qa1 Male,SS-PTFE Race Rod End,LH,5-5.065mm MGML5T
Qa1
MSRP:
$24.35
Now:
$19.12
Was:
$22.49
Spherical Rod End, System of Measurement Metric, Bore Diameter 5 mm, Head Outside Diameter 16 mm, Head Width 5.75 mm, Shank Thread Length 20 mm, Shank Thread Size M5x0.8, Housing Material Stainless...
On Sale
Qa1 Male, Rod End, RH, 5-5.065mm MCMR5
Qa1
MSRP:
$13.30
Now:
$10.45
Was:
$12.29
Spherical Rod End, System of Measurement Metric, Bore Diameter 5 mm, Head Outside Diameter 16 mm, Head Width 5.75 mm, Shank Thread Length 20 mm, Shank Thread Size M5x0.8, Housing Material Carbon...
On Sale

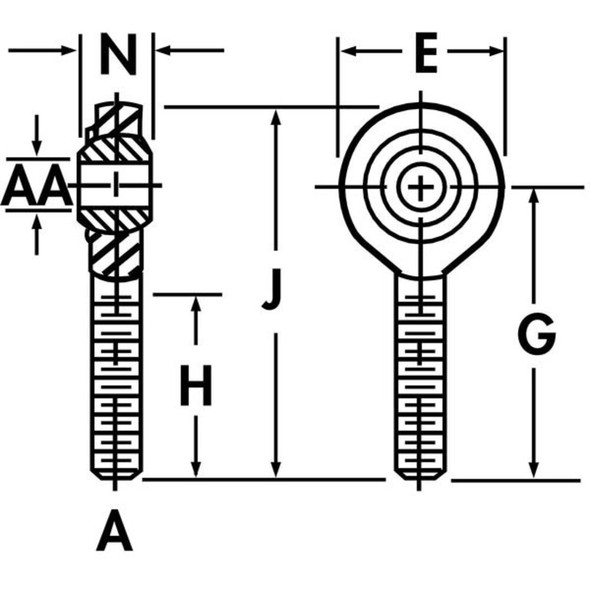

Qa1 Male,SS-PTFE Race Rod End,RH,5-5.065mm MGMR5T
Qa1
MSRP:
$28.87
Now:
$22.67
Was:
$26.67
Spherical Rod End, System of Measurement Metric, Bore Diameter 5 mm, Head Outside Diameter 16 mm, Head Width 5.75 mm, Shank Thread Length 20 mm, Shank Thread Size M5x0.8, Housing Material Stainless...
On Sale

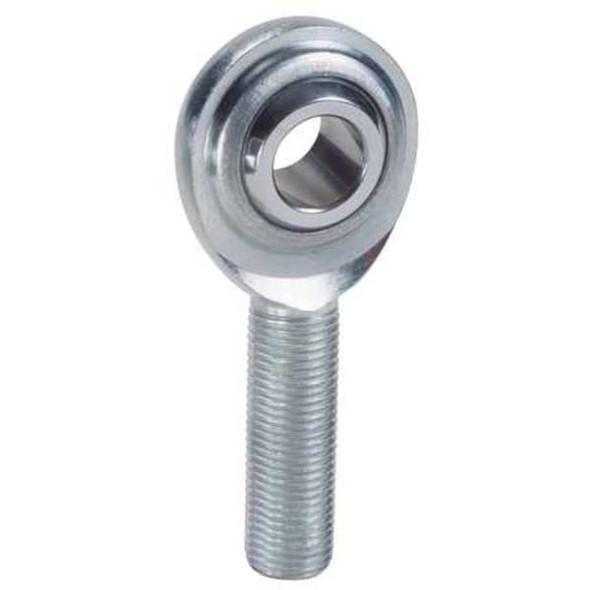

Qa1 Male Rod End,LH,5-8-18 CML10
