Qa1

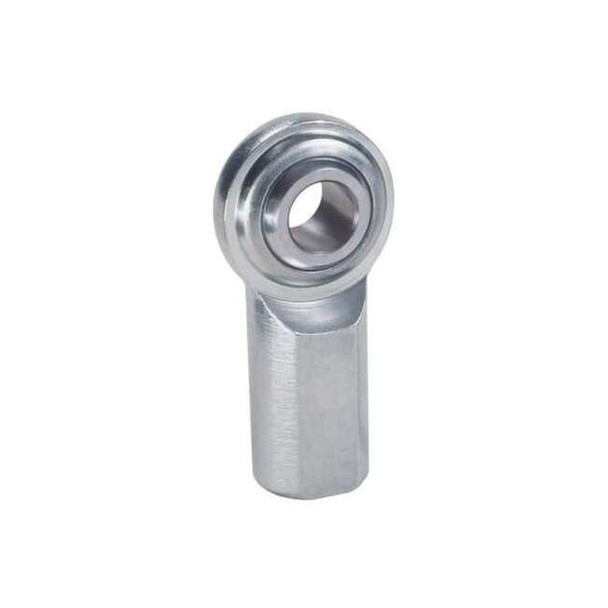

Qa1 Female, Rod End, RH, 16-16.065mm MCFR16
- SKU:
- ZO-G6178566
- UPC:
- 806990016423
- MPN:
- MCFR16
- Condition:
- New
- Weight:
- 0.48 LBS
- Shipping:
- Free Shipping
On Sale
Frequently bought together:
Description
Spherical Rod End, System of Measurement Metric, Bore Diameter 16 mm, Head Outside Diameter 38 mm, Head Width 12.75 mm, Shank Thread Length 33 mm, Shank Thread Size M16x2.0, Housing Material Carbon Steel, Shank Thread Direction Right Hand, Application Light Duty, Ball Diameter 28.58 mm, Ball Material Alloy Steel, Ball Material Grade 52100, Bore Diameter Tolerance +0.065/-0.012 in, Housing Material Finish Chrome Plated, Inner Ring Width 21 mm, Maximum Ball Swivel 33 Degrees , Overall Length 83 mm
View AllClose
Additional Information
Country of Origin: |
China |
SubCategory: |
Power Transmission |
International Shipping: |
No |
Lead Time: |
Expected to ship in 1-2 business days |
Related Products
Related Products
On Sale

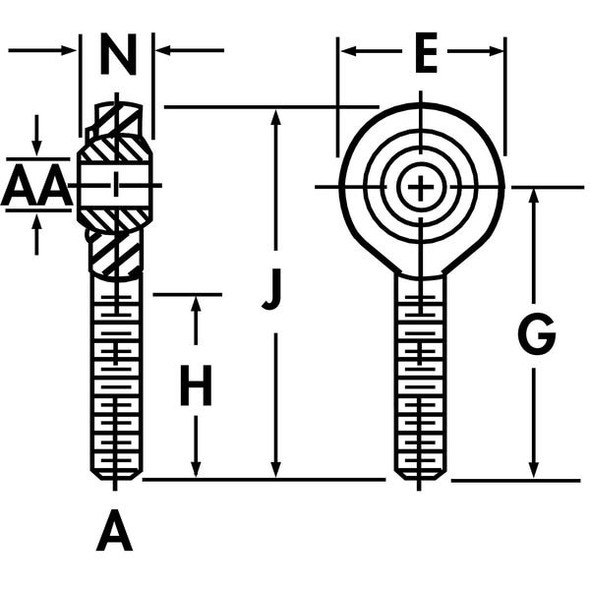

Qa1 Male, Rod End, RH, 16-16.065mm MCMR16
Qa1
MSRP:
$27.99
Now:
$21.98
Was:
$25.86
Spherical Rod End, System of Measurement Metric, Bore Diameter 16 mm, Head Outside Diameter 38 mm, Head Width 12.75 mm, Shank Thread Length 40 mm, Shank Thread Size M16x2.0, Housing Material Carbon...
On Sale
Qa1 Male, Rod End, LH, 16-16.065mm MCML16
Qa1
MSRP:
$23.72
Now:
$18.62
Was:
$21.91
Spherical Rod End, System of Measurement Metric, Bore Diameter 16 mm, Head Outside Diameter 38 mm, Head Width 12.75 mm, Shank Thread Length 40 mm, Shank Thread Size M16x2.0, Housing Material Carbon...
On Sale

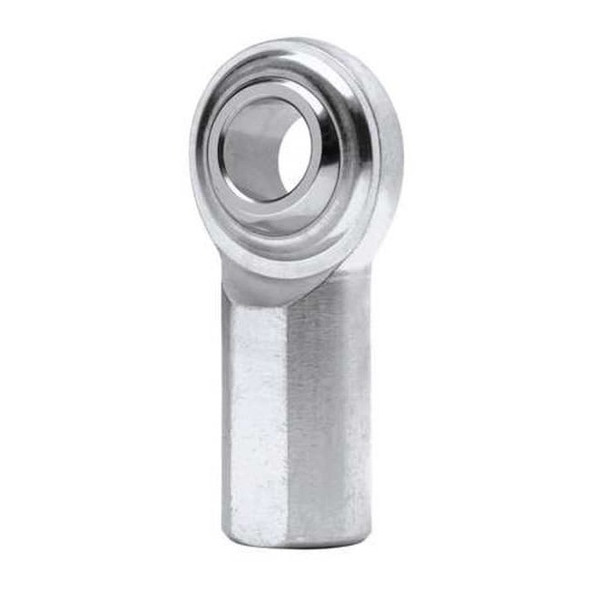

Qa1 Female Rod End,SS,RH,3-4-16 GFR12T
Qa1
MSRP:
$68.30
Now:
$53.64
Was:
$63.10
Spherical Rod End, System of Measurement Inch, Bore Diameter 3/4 in, Head Outside Diameter 1 3/4 in, Head Width 0.593 in, Shank Thread Length 1 1/2 in, Shank Thread Size 3/4 In.-16, Housing Material...
On Sale
Qa1 Female Rod End,SS,RH,5-16-24 GFR5T
Qa1
MSRP:
$24.35
Now:
$19.12
Was:
$22.49
Spherical Rod End, System of Measurement Inch, Bore Diameter 5/16 in, Head Outside Diameter 7/8 in, Head Width 0.312 in, Shank Thread Length 5/8 in, Shank Thread Size 5/16 In.-24, Housing Material...
On Sale

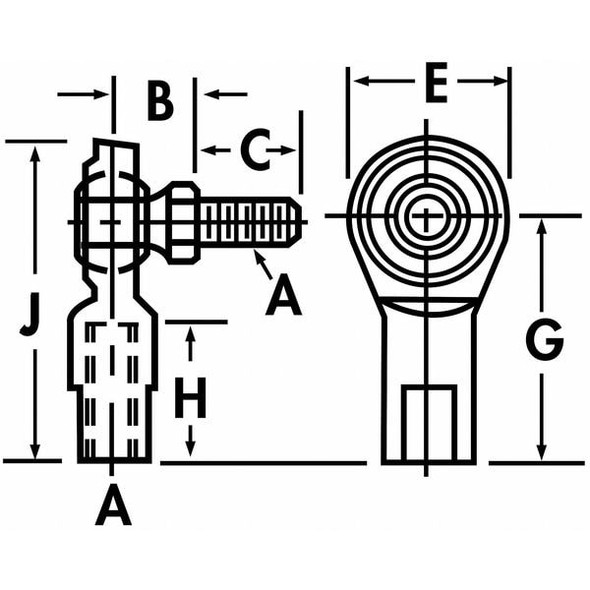

Qa1 Female Stud Rod End,RH,5-16-24 CFR5S
