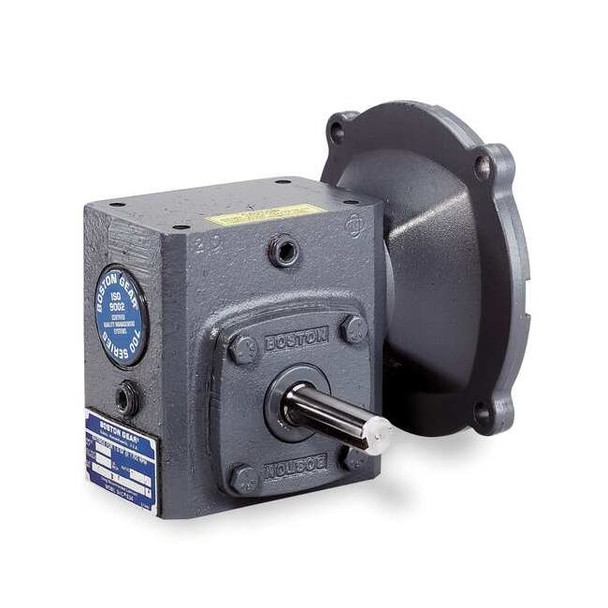

Boston Gear Speed Reducer,C-Face,56C,10:1 F713-10-B5-G
Boston Gear Speed Reducer,C-Face,56C,10:1 F713-10-B5-G
$714.84 Our price
$773.79
Retail Price
FREE Shipping
| Current Stock: | 9 |
| Brand: | Boston Gear |
| Mpn: | F713-10-B5-G |
| UPC: | 781711518731 |
| Shipping: | Free Shipping |
| SubCategory: | Power Transmission |
| Prop 65: | WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| International Shipping: | No |
| Color: | Gray |
| Lead Time: | Expected to ship in 1-2 business days |
| Material: | Cast Iron |
Description
Speed Reducer, Input Connection Type C-Face, Gear Type Worm, Output Shaft Type Round, Maximum Output Speed 175 RPM, Motor Frame Designation 56C, Worm Center Distance 1.33 in, Base to Center 1.75 in, Gear Ratio 10:1, Rotation CW/CCW, Maximum Input Horsepower 0.75 hp, Maximum Output Torque 240 in-lb, Overhung Load Capacity 200 ft-lb, Mounting Orientation Any Angle, Housing Material Cast Iron, Bearing Type Tapered Roller, Gear Material Hardened and Ground Steel
