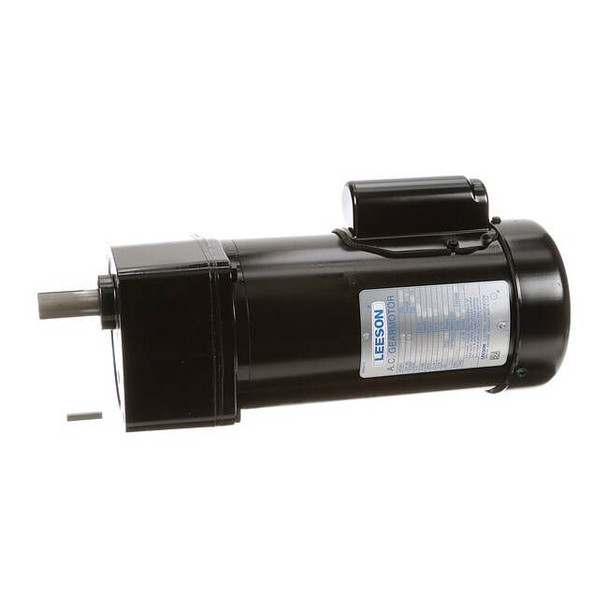

Leeson AC Gearmotor,TEFC,345RPM,115-230V AC 096052.00
Leeson AC Gearmotor,TEFC,345RPM,115-230V AC 096052.00
$984.64 Our price
$1,065.84
Retail Price
FREE Shipping
| Current Stock: | 9 |
| Brand: | Leeson |
| Mpn: | 096052.00 |
| UPC: | 691720255346 |
| Shipping: | Free Shipping |
| SubCategory: | Power Transmission |
| International Shipping: | No |
| Lead Time: | Expected to ship in 1-2 business days |
| Features: | All gearing designed and rated to AGMA class 9 standards, All needle bearing journals are precision ground after heat treating to provide maximum fit and finish, All rated for 60/50 Hz operation except hi-torque single-phase which are 60 Hz only, and |
| Material: | Die Cast Aluminum |
Description
AC Gearmotor, Number of Output Shafts 1, Motor Type Capacitor-Start, Motor Enclosure Totally Enclosed Fan-Cooled, Nameplate Speed 345 RPM, Maximum Torque 55 in-lb, Overhung Load Capacity 300 ft-lb, Rotation CW/CCW, Mounting Orientation Horizontal, Vertical with Shaft Down, Operating Voltage 115/230V AC, Gear Ratio 5:1, Brake Type None, Shaft Orientation Parallel, Includes Capacitor Capacitor Included, Motor Insulation Class F, Includes Junction/Conduit Box Yes, Motor Duty Class Continuous
