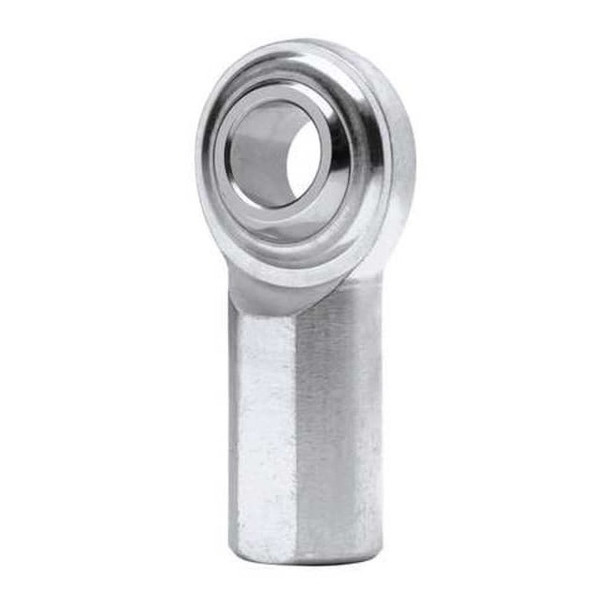

Qa1 Female Rod End,RH,3-16 in Bore,#10-32 GFR3T
Qa1 Female Rod End,RH,3-16 in Bore,#10-32 GFR3T
$22.89 Our price
$24.78
Retail Price
FREE Shipping
| Current Stock: | 22 |
| Brand: | Qa1 |
| Mpn: | GFR3T |
| UPC: | 806990002839 |
| Shipping: | Free Shipping |
| Material: | Stainless Steel |
| Color: | Silver |
| SubCategory: | Power Transmission |
| International Shipping: | No |
| Lead Time: | Expected to ship in 1-2 business days |
Description

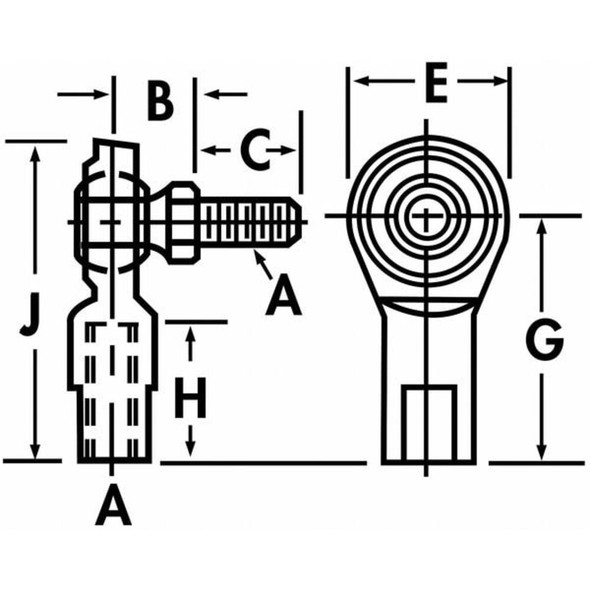

Spherical Rod End, System of Measurement Inch, Bore Diameter 3/16 in, Head Outside Diameter 5/8 in, Head Width 0.234 in, Shank Thread Length 1/2 in, Shank Thread Size #10-32, Housing Material Stainless Steel, Shank Thread Direction Right Hand, Application Light Duty, Ball Diameter 0.437 in, Ball Material Stainless Steel, Ball Material Grade 440C, Bore Diameter Tolerance +0.0015/-0.0005 in, Housing Material Finish Chrome Plated, Inner Ring Width 0.312 in, Maximum Ball Swivel 20 Degrees
